2019-2020 Eğitim Öğretim Yılı Bitirme Projeleri

Innovative 3D Chocolate Printer

(Bu Proje TÜBİTAK 2209/A Programı Tarafından Desteklenmiştir)

Proje Öğrencileri: E. KURU, T. YİĞİT, R. TÜRKOĞLU, Y.S. KOÇ, M.A. YEĞİN, M. SEMERCİOĞLU

Proje Danışmanı : Dr. Özgün SELVİ

Abstract : There are many types of 3D printers that paste mostly PLA which is a type of plastic. We have started our project as a team and changed several parts of a simple printer to be able to paste chocolate instead of plastic that called as 3D chocolate printer. We have some trouble tempering chocolate. The main problem is that the chocolate products do not have a good surface finish. We want our system to have continuous feeding, therefore we need to develop a system consists of a tank and a tempering system. To conclude, the main problem is shape of products and our purpose is to develop extruding chocolate in a desired shape. Three different experiments are done on the selected concept. Sub- systems designs are shown and told. To show every detail of the project, analysis of fluid dynamics, heat transfer and air discharge account between the syringe and chocolate tank are done and numerical values of them are obtained by calculations. In addition, seal and check- valve are selected according to its variables.

Interventional Radiology Soft Robot Project

(Bu Proje TÜBİTAK 2209/B Programı Tarafından Desteklenmiştir)

Proje Öğrencileri: A. HERGÜL, B. YİĞİT, A.B. MEMİŞ, E. BAL, B. TEBER

Proje Danışmanı : Dr. Özgün SELVİ

Abstract : The aim of this project is to add innovations by revising the system in the best way by observing the deficiencies in competing systems according to customer expectations and requirements. Upon observations, it was decided to implement catheter and wire end with high degree of freedom and mobility. In the motion system of this end section; “How can the most efficient and comfortable be achieved?” was asked. The first priority in this process has been progressed to be human health. In these processes, we preferred shape memory alloy for the movement of catheter and wire, conveyor belt and wire donor for forward-backward and freezing movement in order to provide the best movement ability to the doctor. Unlike competing companies, we used a navigation interface, which provided faster and safer operation for our customers. After the detailed design phase, production and testing steps were carried out.

Design, Implementation & Testing of an Carrying Robotic Arm

(Bu Proje TÜBİTAK 2209/B Programı Tarafından Desteklenmiştir)

Proje Öğrencileri: A. TAŞKIN, B. SÜSLÜ, F. ÖZLÜ

Proje Danışmanı : Dr. Özgün SELVİ

Abstract : Today, with the development of technology, artificial intelligence and robot technology are rapidly becoming a part of lives. It is very important for businesses to have the right technology to stay at the forefront of the rapidly evolving digital age. These new technologies will provide many advantages to many sectors such as industry, manufacturing, industry and health. Future oriented companies are adopting Industry 4.0, the new technological revolution, by applying artificial intelligence and robotic technology. In this project, a delta robot and universal holder research was conducted to evaluate how this area is technologically examined. The purpose of this project is to design a carrier and packer robot arm at the request of the customer. In the current system; There is a robot arm that moves on X Y Z axes, a soft holder and a conveyor. It will be an innovative design that keeps up with the developing technology. After making the necessary calculations and analysis, a virtual model was developed taking into account the design features. It is seen that the project works smoothly in the virtual model section. Appropriate tests have been determined by considering customer demands to be applied as a result of production.

Air Classifier Design and Development

(Bu Proje MEKA A.Ş ile İşbirliği İçerisinde Gerçekleştirilmiştir.)

Proje Öğrencileri: A.D.TOPRAK, H.N. ULAŞ, M. TAŞ, N.İ. UDÜL, Y.Ç. ÇAĞLAR

Proje Danışmanı : Prof. Dr. Haşmet TÜRKOĞLU, Dr. Ekin ÖZGİRGİN YAPICI

Firma Danışmanı : Ekrem SAVAŞ, Cengiz YILDIRIM

Abstract : Within the scope of the project, which is supported by MEKA A.Ş, a gravitational inertial air classifier has been designed according to customer requirements. Gravitational inertial air classifier separates the feed containing particles of different sizes into particles of the desired size. It consists of one feed inlet channel, two air inlet channels, one fine particle and air exit channel and one coarse particle exit channel. In this project designed air classifier’s feed capacity is 75 tons/hour and desired cut off size is 75 microns. For the above-mentioned purposes, the air classifier’s components were designed, technical drawings of all the parts were created, and a scaled down model is manufactured.

Automated Storage and Retrıeval System with Shuttle

(Bu Proje GÜÇLÜ MADENİ ÇELİK EŞYA A.Ş. ile İşbirliği İçerisinde Gerçekleştirilmiştir.)

Proje Öğrencileri: S.B. ARSLAN, M.A. DİNÇER, Ö. BOSTAN, S. BAŞ, G. KORKMAZ, V. EFLATUN, B. TEMİZ

Proje Danışmanı : Öğr. Gör. Onat Halis TOTUK, Yavuz Suat BENGÜR

Abstract : The project aimed to manufacture and test shuttle design in the automated storage and retrieval system within the scope of Industry 4.0 and successfully concluded. The products requested to be stored are placed on the shuttle in accordance with the euro pallet standard dimensions and transferred to the appropriate shelves intended to be stored, via barcode reading and via the shuttle via rail without using human factor. The large shuttle is moving on a single axis on the rail and is transferred to the upper floors with the help of a crane. The small shuttle is hovering between shelves and moving on two axes. The FIFO (first-in-first-out) theory applies to the retrieval of stored products. Due to the elimination of the human factor, it provides a high advantage in storage areas due to addressing areas that people should not enter in terms of Health and increasing the storage volume by 80%.

Rehabilitation and Optimization Of An Axial Fan In Subsonic Wind Tunnel

(Bu Proje TÜBİTAK 2209/A Programı Tarafından Desteklenmiştir)

Proje Öğrencileri: M. KARTAL, E.N. KANTAR, T.C. MENDİ, E.K. ŞURGUN, B. AYTEKİN, C. GÜNÇE

Proje Danışmanı : Dr. Ece AYLI, Arş. Gör. Eyup KOÇAK

Abstract : The axial fan that is the most familiar turbomachine is widely used in industrial applications like ventilation systems, aeronautical applications, home appliances, computers, and electronic appliance coolers, According to the pressure difference between the suction side and the pressure side of the fan blades fluid motion is generated. The main parameters that affect the fan performance are the meridional profile of the blade, beta, theta angle distribution through the leading edge to the trailing edge of the blade, number of the blades, and thickness of the profile. Designers aim to increase the generated power and efficiency of the fan while considering certain flow rates with optimizing those parameters. In order to test the accuracy of the developed methodology, fan performance test set-up is constructed, and the performance comparison is performed between the actual fan and reverse engineering fan. The results demonstrate the feasibility of developed reverse engineering methodology. In the second part of the study, the reverse engineering fan is rehabilitated with the help of the numerical methods. It will be the first research in the literature that develops a hybrid method uses reverse engineering and optimization method for the fan rehabilitation.

Design Of Elevator For Tall Poles to Lower And Raise Their Payloads

(Bu Proje MİTAŞ ENERJİ A.Ş. ile İşbirliği İçerisinde Gerçekleştirilmiştir.)

Proje Öğrencileri: A. YÜREKLİ, E.C. ERBAŞ, B.B. AKGÖL, U. ÖZTÜRK, H.B. ÖZMEN

Proje Danışmanı : Dr. Turgut AKYÜREK

Abstract : Within the scope of the project, an elevator system has been designed for high masts to lowering and raising their payloads.

The system consists of three main parts. The platform is carrying all the payloads which moves the center direction of the mast. The platform locks to head frame for working condition. The head frame allows to steel ropes for changing their direction and brakes for emergency. The last part is below side of the high mast which of drum and motor. The innovative latch mechanism and brake mechanism are fully mechanical.

Dossier Robot Design

Proje Öğrencileri: N.C. COŞKUN, S. ARSLANTAŞ, H. GÖBÜT, E. İZMİRLİ, C. TAŞDELEN

Proje Danışmanı : Öğr. Gör. Onat Halis TOTUK

Abstract : In the project, a robot design was made for automatic storage and retrieval system and prototype production was made and tested depending on this design. The robot designed in the project was produced to carry or receive files on the shelves in the archive room. Thanks to the designed robot, the robot reaches the desired location and ensures that the file is taken from the desired location. When designing the robot, it was designed to be the first gripper to carry files. The designed gripper was put inside the box. The designed gripper works thanks to the actuator. The linear compact module is used for grip and box movement. Thanks to the linear compact module, the movement of the box with the holder is achieved by sliding up or down on the rail. The base plate has a gear motor so the system works. The bearing is mounted on the base plate and built on the turntable design. Thanks to the turntable, the linear compact module and the holder rotate. Thanks to the turntable, the robot can reach the shelves on the left or right of the corridor. In the system whose design is finished, there is a corridor between the racks and the robot can also pass through the corridor between the two racks. Depending on the design, the system was simulated. Depending on the system in the simulation, the parts on the robot were optimally produced from the 3D printer and the test of the product was completed.

Flexible Knee Brace

Proje Öğrencileri: M. ARZUHALCİ, C. ATALAY, A. BOZKURT, A. E. ERCİYAS, B. KUBUS

Proje Danışmanı : Dr. Hakan TANRIÖVER, Dr. Özgün SELVİ

Abstract : Within the scope of the project, health problems in the knee region of the human body are addressed. In this direction, a support system has been designed, manufactured, and tested is planned against knee strain. The condition that knees are exposed to most in daily life is walking. The angle formed in the knee joint during walking is approximately 0-65 °, 0-85 ° when climbing stairs and 90° when sitting. These angle values take different values in accordance with different movements. According to these values, the amount of load caused by body weight in this region varies. The knee brace is produced in a way that meets this working range. Knee brace is basically composed of three parts. These can be divided into elastic main body, plastic handles and fixing strap. The elastic front body, which is generally thought to be produced with 3d printer technology, is the most important part of the system. It helps the muscle and bone structure in the area by supporting the load that occurs during knee movements in the elasticity. Plastic parts and strap help fix the knee pad by bringing it in proper position. In this way, besides supporting the load, it helps to accelerate patella stabilization and blood flow in the region. In line with the above-mentioned purposes, the components were produced separately, and test planning was made.

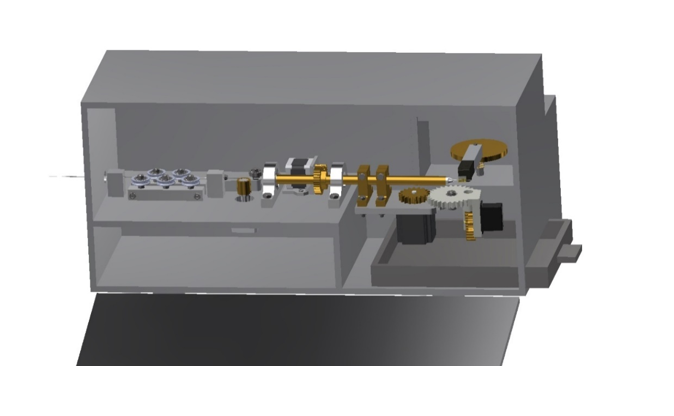

Dental Wire Bending Machine

Proje Öğrencileri: M.A. TOS, İ. ŞENTÜRK, Z.Y. VARDAR

Proje Danışmanı : Dr. Özgün SELVİ, Öğr. Gör. Onat Halis TOTUK

Abstract : In the project implementation, a machine was designed, prototyped and tested to bend the nitinol wire used by dentists in dental braces in the ways you choose. The feeder system was designed and constructed to bring the wire to the bending end. Later, the motors and bearings together with the wire were provided to come towards the bending end properly. By converting the data received from the dentists into g-code, the arduino system enables the wire to be shaped as desired in the bender system section.

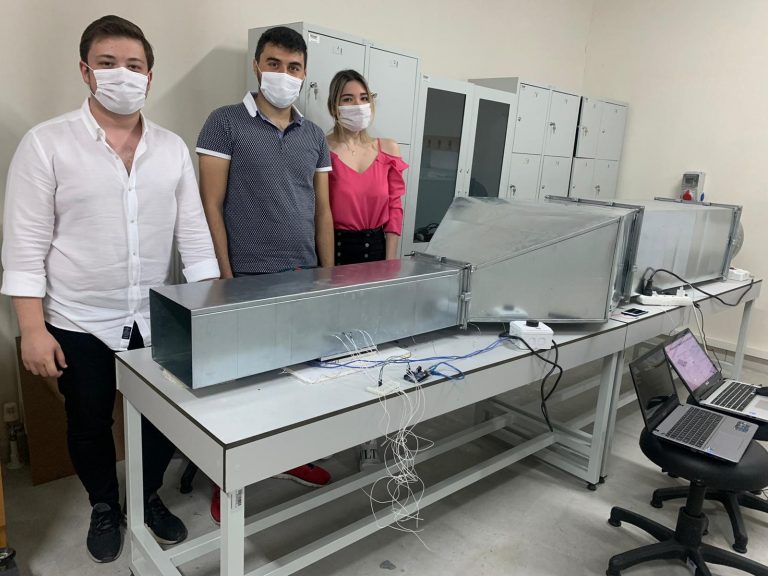

Heat Transfer Enhancement By Using Passive Methods

Proje Öğrencileri: Ö.B. BAŞÇINAR, Y.A. ÇALIŞKUR, E.C. AYGÜN, G. TANRIKULU

Proje Danışmanı : Dr. Ece AYLI, Dr. Ekin ÖZGİRGİN YAPICI

Abstract : We need heat transfer enhancement to make heat transfer equipment compact, to achieve a high heat transfer rate using minimium pumping power ,for minimizing the cost of energy and material.In order to increase the efficiency of heat exchangers, the most effective method of energy saving is to increase the heat transfer coefficients on the hot and cold fluids side according to the current situation. This can be accomplished by one or more active or passive methods. The method of improving heat transfer without additional energy is called passive method. Coiled tubes, vortex manufacturers placed at the inlet, bent band pieces, screw type rotating pieces, winding wires, guiding wings, flow rotating propellers are examples of passive methods. In this project Heat transfer rates and corresponding Nusselt number distributions are studied both experimentally and numerically using different vortex promoter geometries (square and hexagonal) in different locations to illustrate the effect of vortex promoter on fluid flow.

Gearbox Test Apparatus

Proje Öğrencileri: K. KAN, B. KARAKOYUN, C. ŞEHRİ, U.C. ÖZKAN, E. BEYTULLAHOĞLU

Proje Danışmanı : Dr. Hakan TANRIÖVER

Abstract : This test system design for testing the gear sets fatigue life. This test system should simulate the real conditions and for that reason we integrate magnetic brake system to the output shaft for simulating load conditions of gearboxes. For system accuracy and adaptation of new setups torque sensor is mounted on system. This setup type helps us to provide same conditions every time test is setup and if the test want to be repeat system can provide same conditions.
